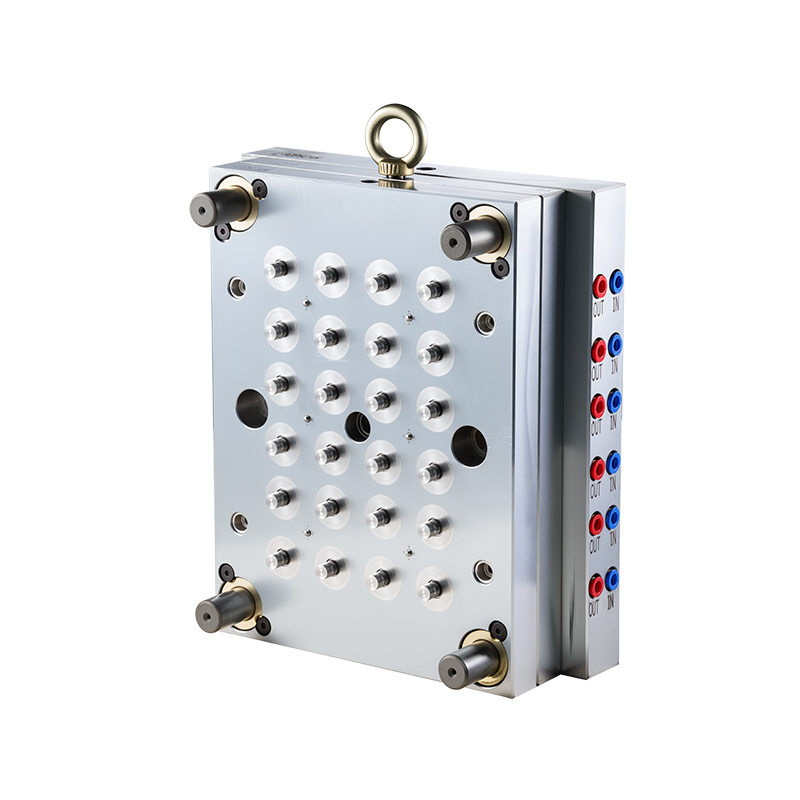

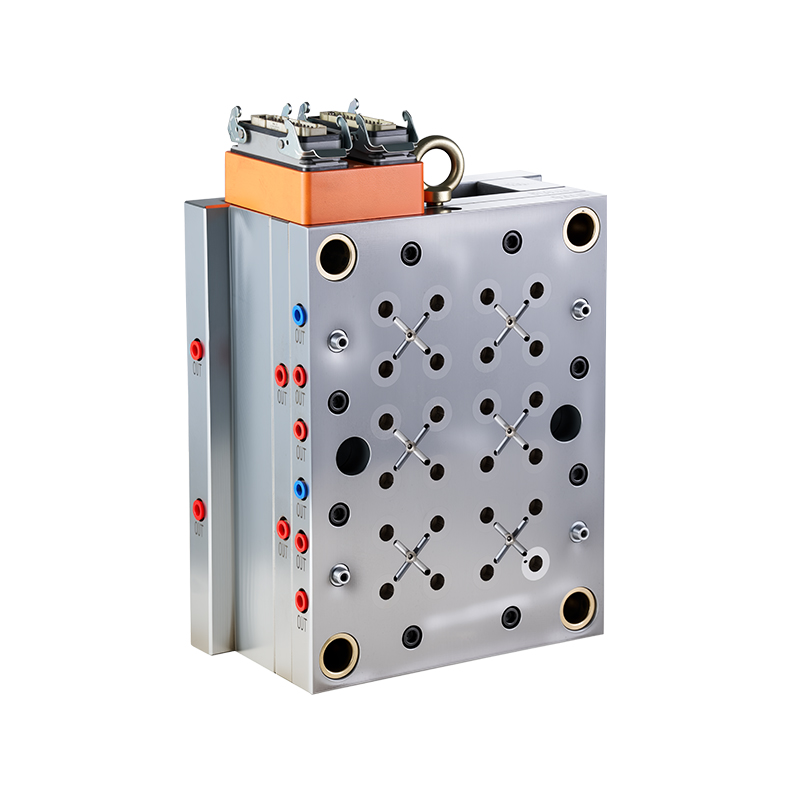

24-Cavity Semi-Hot Runner Plastic Blood Collection Tube Cap Mold

The plastic blood collection tube cap mold is a high-precision injection mold used in the production of medical consumables, specifically designed for blood collection tube caps. This mold typically employs a semi-hot runner or hot runner system to ensure uniform filling of the mold cavity with molten plastic, guaranteeing stable cap dimensions and sealing performance. The mold material and processing accuracy directly affect production efficiency and service life.

Design Principles of Plastic Blood Collection Tube Cap Molds

The core objective of a plastic blood collection tube cap mold is to ensure the sealing performance and dimensional accuracy of the finished product while meeting high-efficiency production requirements. The following factors need to be considered during the design process:

Mold Cavity Accuracy

• Dimensional deviations in blood collection tube caps directly affect sealing performance; therefore, mold cavity processing accuracy must be strictly controlled at the micron level.
• Using high-precision CNC machining and mirror polishing technology can reduce demolding resistance and improve surface finish.

Gate and Runner Design

• A reasonable design of the hot runner or semi-hot runner system ensures uniform filling of the mold cavity with plastic.
• A semi-hot runner plastic mold can maintain the melt temperature while reducing energy consumption and waste.

Demolding and Venting Design

• Blood collection tube caps are usually circular in structure; therefore, appropriate ejector pins or demolding angles need to be designed to ensure smooth demolding.
• Vent holes or thin-film venting designs can prevent bubbles and short shots, improving the product yield.

Safety and Chemical Resistance

• Blood collection tube caps need to be resistant to commonly used disinfectants, alcohol, and blood samples; the material and mold surface treatment should have corrosion resistance.

Mold Material Selection and Durability

The selection of materials for plastic blood collection tube cap molds directly relates to production efficiency and mold life. The following types of materials are usually considered:

Mold materials are subjected to high temperature, high pressure, and friction during long-term production. Choosing high-wear-resistant steel or performing surface nitriding treatment helps extend mold life and maintain dimensional stability.

Production Process Optimization

Blood collection tube caps require high precision and sealing performance; therefore, the production process needs to be optimized for medical applications:

Injection Molding Parameter Control

• Precisely control melt temperature, injection speed, and pressure to avoid uneven thickness and surface defects.
• Use temperature-controlled molds to ensure consistency across all product batches.

Cooling System Design

• Blood collection tube caps have a small and precise structure, requiring a multi-channel cooling design to ensure uniform temperature distribution in all areas.
• Cooling channel positions can be optimized through simulation analysis to shorten cycle time and improve production efficiency.

Semi-Hot Runner Plastic Mold Application

• The semi-hot runner system reduces cold runner waste while ensuring melt uniformity.
• For the production of small medical components, it ensures precision while reducing energy consumption and mold wear.

Automation and Quality Monitoring

• Combine online dimensional inspection, pressure, and temperature monitoring systems to detect production anomalies in real time.
• This enables high-throughput production while maintaining medical-grade product quality.

Quality Control of Blood Collection Tube Cap Molds

Medical applications demand strict quality requirements for plastic blood collection tube caps; therefore, the inspection of molds and finished products is particularly important:

• Dimensional Inspection: Use a coordinate measuring machine to inspect the height, diameter, and wall thickness of the caps.
• Sealing Test: Simulate blood or liquid samples to test the sealing performance of the caps.
• Material Performance Testing: Evaluate chemical resistance, temperature resistance, and impact resistance.
• Production Process Control: Record injection pressure and temperature curves to ensure batch consistency.

Through multi-dimensional quality control, it is possible to ensure that the blood collection tube caps meet medical standards while reducing rework and scrap.
